ESD Mat

Description

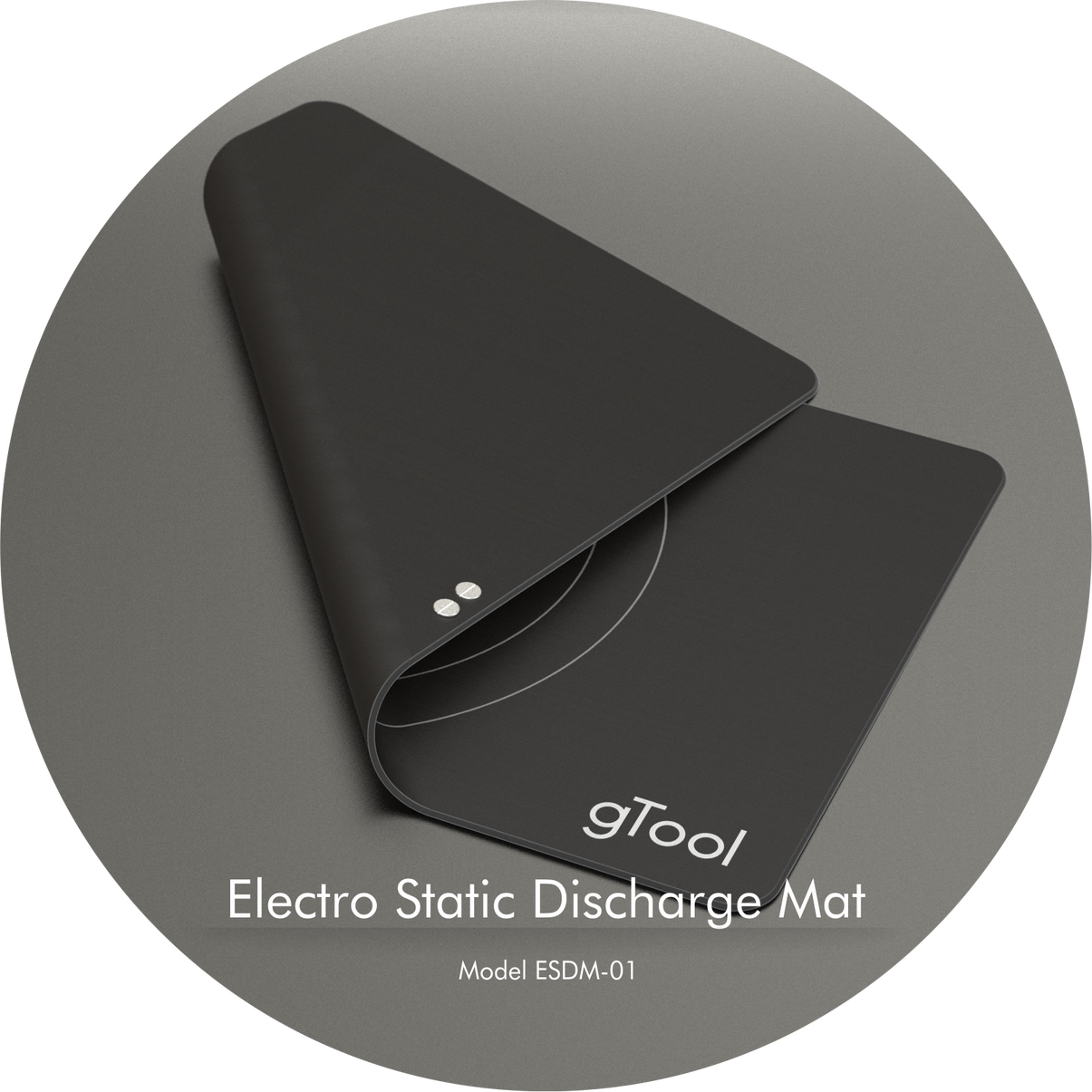

Product Info: gTool ESD mats are extremely durable with a very low decay time. The mats are made of  2 parts a 1.5mm anti-static conductive material and a 0.5mm static-dissipative synthetic rubber material. With the double magnetic latching pin system mounted on the top of the mat the user can easily latch on the gTool ESD bonding plug to the mat using the 1.5meter gTool ESD magnetic cable. Mat Properties:

• Surface Resistance of Top Layer : 10E6 – 10E9
• Surface Resistance of Bottom Layer: 10E3 – 10E5
• Bulk Resistance : 10E5 – 10E8
• Abrasive Loss : <0.02g/cm2
• Decay Time : <0.1s

Mat Size:

• Length :600mm
• Width : 400mm
• Thickness : 3mm

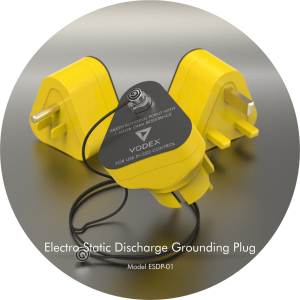

Important Notes: In order for this ESD Mat to function correctly it must be used together with ESD Grounding Plug ESDP-01.
